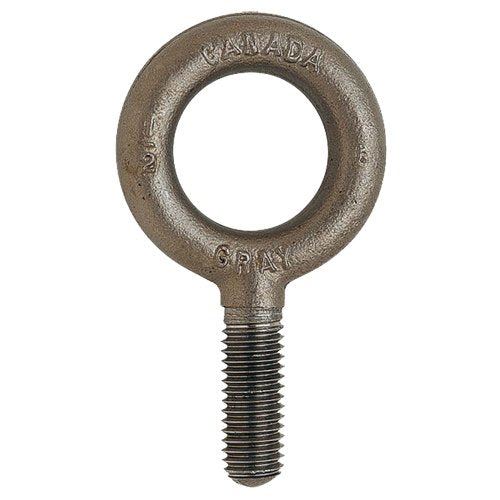

LU682-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 1200 lbs. (0.6 tons)
• Finish: Uncoated Natural Finish
• Eye Diameter: 1-7/16"
• Shank Length: 1-1/8"
• Body Style: Without Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• I.D. Eye: 7/8"
• O.D. Eye: 1-7/16"
• Thread size mm, UNC-2A: 5/16" - 18"
• Overall Dimensions: 2-19/32" L x 1-1/2" W x 3/16" H
• Weight: 2-19/32" L x 1-1/2" W x 3/16" H
