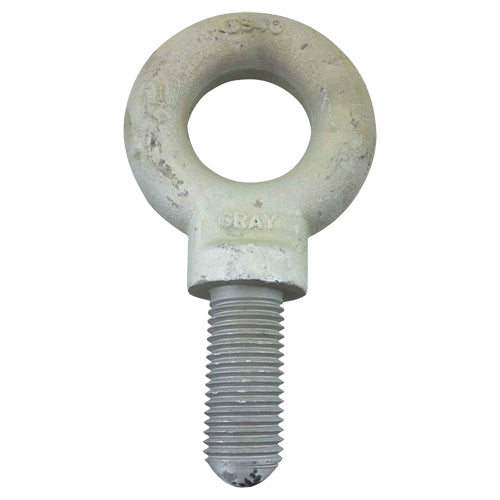

LU680-Eye Bolt

LU680-Eye Bolt

by Gray Tools
SKU: LU680
$46.59 - $46.59
$46.59
$46.59 - $46.59
$46.59
  • Never apply loads greater than rated capacity
  • Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
  • Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

  • Working Load Limit: 21000 lbs. (10.5 tons)
  • Finish: Galvanized
  • Eye Diameter: 4-7/16"
  • Shank Length: 3"
  • Body Style: With Shoulder
  • Shank Threading: Fully Threaded

Additional Specifications

  • Thread size, UNC-2A: 1-1/4" - 7"
  • I.D. Eye: 2/16"
  • Weight: 4.7 lbs.
  • O.D. Eye: 4-7/16"
  • Overall Dimensions: 4-7/16"
