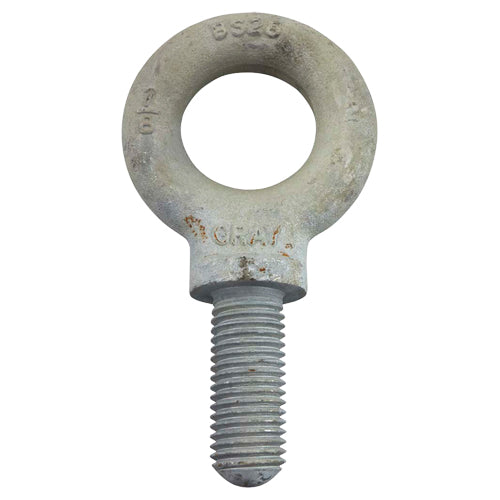

LU679-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 10600 lbs. (5.3 tons)
• Finish: Galvanized
• Eye Diameter: 3-3/16"
• Shank Length: 2-1/4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Weight: 1.55 lbs.
• I.D. Eye: 1-11/16"
• O.D. Eye: 3-3/16"
• Overall Dimensions: 6" L x 3-1/4" W x 1-1/4" H
• Thread size mm, UNC-2A: 6" L x 3-1/4" W x 1-1/4" H
