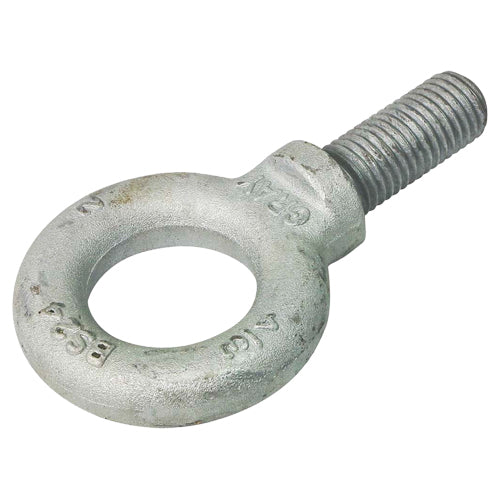

LU678-Eye Bolt
by Gray Tools
Original price
$11.72
-
Original price
$11.72
Original price
$11.72
$11.72
-
$11.72
Current price
$11.72
- Never apply loads greater than rated capacity
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
Specifications
- Working Load Limit: 7200 lbs. (3.6 tons)
- Finish: Galvanized
- Eye Diameter: 2-13/16"
- Shank Length: 2"
- Body Style: With Shoulder
- Shank Threading: Fully Threaded
Additional Specifications
- Weight: 1 lbs.
- I.D. Eye: 1-1/2"
- O.D. Eye: 2-13/16"
- Thread size mm, UNC-2A: 3/4" - 10"
- Overall Dimensions: 3/4" - 10"
