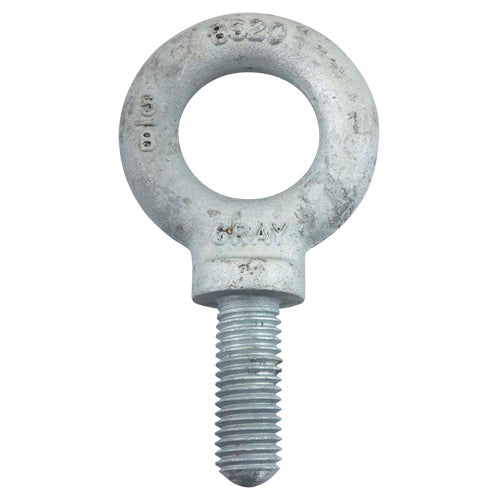

LU677-Eye Bolt

• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Never apply loads greater than rated capacity

Specifications

• Working Load Limit: 5200 lbs. (2.6 tons)
• Finish: Galvanized
• Eye Diameter: 2.5625"
• Shank Length: 1-3/4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Weight: 0.75 lbs.
• I.D. Eye: 1-3/8"
• O.D. Eye: 2-9/16"
• Overall Dimensions: 4-3/4" L x 2-3/4" W x 1" H
• Thread size mm, UNC-2A: 4-3/4" L x 2-3/4" W x 1" H
