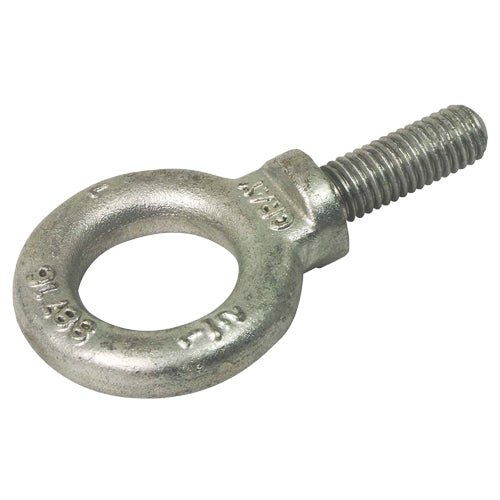

LU675-Eye Bolt
by Gray Tools
Original price
$6.78
-
Original price
$6.78
Original price
$6.78
$6.78
-
$6.78
Current price
$6.78
- Never apply loads greater than rated capacity
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
Specifications
- Working Load Limit: 2600 lbs. (1.3 tons)
- Finish: Galvanized
- Eye Diameter: 2-1/8"
- Shank Length: 1-1/2"
- Body Style: With Shoulder
- Shank Threading: Fully Threaded
Additional Specifications
- Weight: 0.46 lbs.
- Thread size, UNC-2A: 1/2" - 13"
- I.D. Eye: 1-3/16"
- O.D. Eye: 2-1/8"
- Overall Dimensions: 2-1/8"
