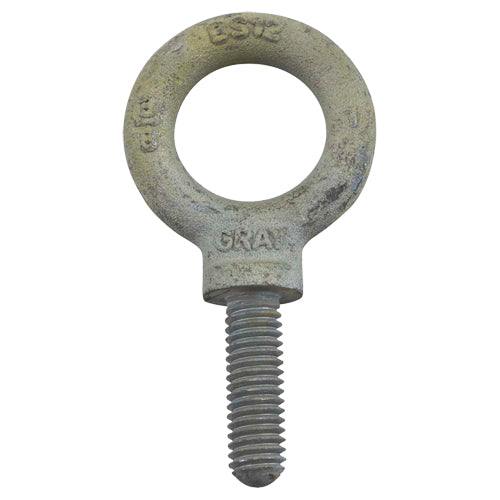

LU673-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline

Specifications

• Working Load Limit: 1550 lbs. (0.775 tons)
• Finish: Galvanized
• Eye Diameter: 1-11/16"
• Shank Length: 1-1/4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Weight: 0.2 lbs.
• I.D. Eye: 1"
• O.D. Eye: 1-11/16"
• Thread size mm, UNC-2A: 3/8-16"
• Overall Dimensions: 3/8-16"
