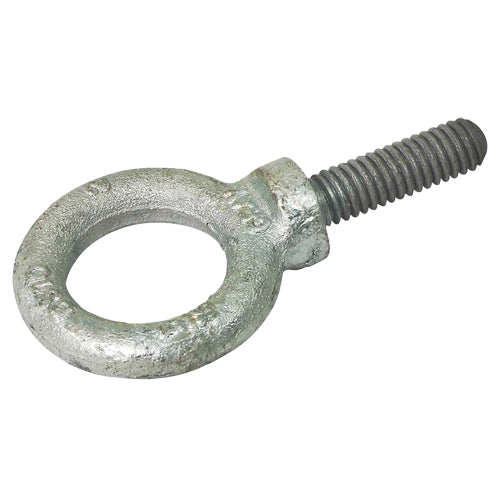

LU672-Eye Bolt

• Never apply loads greater than rated capacity
• Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
• Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Specifications

• Working Load Limit: 1200 lbs. (0.6 tons)
• Finish: Galvanized
• Eye Diameter: 1-7/16"
• Shank Length: 1-1/8"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Weight: 0.1 lbs.
• O.D. Eye: 1-7/16"
• Overall Dimensions: 2-3/4" L x 1-1/2" W x 1/2" H
• Thread size mm, UNC-2A: 5/16" - 18"
• I.D. Eye: 5/16" - 18"
