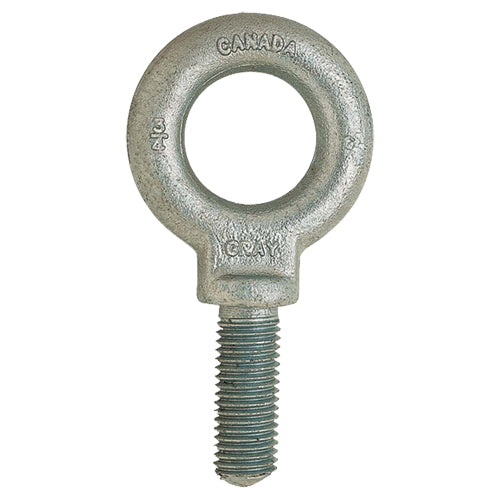

LU671-Eye Bolt
by Gray Tools
Original price
$4.27
-
Original price
$4.27
Original price
$4.27
$4.27
-
$4.27
Current price
$4.27
- Never apply loads greater than rated capacity
- Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline
- Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
Specifications
- Working Load Limit: 650 lbs. (0.325 tons)
- Finish: Galvanized
- Eye Diameter: 1-3/16"
- Shank Length: 1"
- Body Style: With Shoulder
- Shank Threading: Fully Threaded
Additional Specifications
- Weight: 0.06 lbs.
- Thread size, UNC-2A: 1/4" - 20"
- O.D. Eye: 1-3/16"
- Overall Dimensions: 2-1/4" L x 1-1/4" W x 1/2" H
- I.D. Eye: 2-1/4" L x 1-1/4" W x 1/2" H
