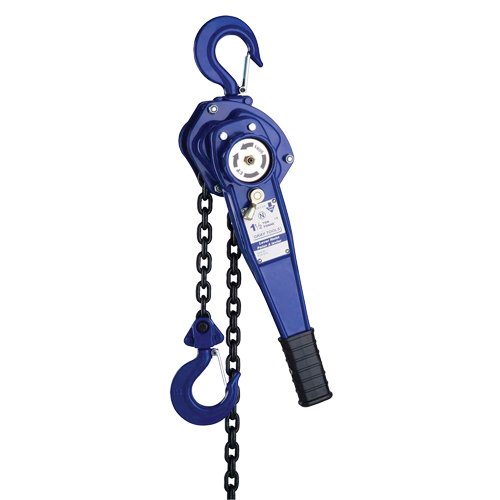

LU658-Lever Hoist

• 180° angled load chain guide is cast into the housing eliminating fouling and jamming of the chain
• High impact, lightweight steel housing provides optimum protection of gears, brake, and components from dust, dirt, and grit
• Single-piece brake cover and handle design provide added protection from damaging dust, dirt, and grit
• Safety mechanical brake instantly engages when operation is stopped offering a reliable and safe hold
• Tested to 150% of rated capacity. Test certificate included
• CE certified and compliant with ANSI B30.11 specifications

Specifications

• Capacity: 6000 lbs. (3 tons)
• Lift: 5'
• Chain Material: Grade 80 load chain

Additional Specifications

• Overall Dimensions: 10" L x 19" W x 10" H
• Weight: 40 lbs.
