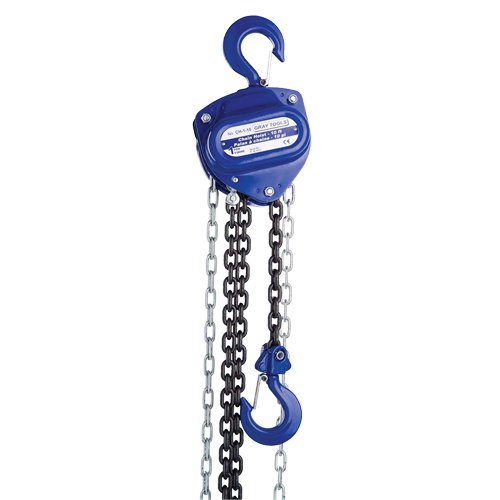

LU647-Chain Hoist

• Double cover housing for optimum protection of gears, brake, and components from damaging dust, dirt, and grit
• Safety mechanical brake instantly engages when operation is stopped offering a reliable and safe hold
• Precision maintenance-free sealed bearings increase long-term reliability and reduce pull required to lift loads
• Tested to 150% of rated capacity. Test certificate included
• CE certified and compliant with ANSI B30.11 specifications

Specifications

• Capacity: 2000 lbs. (1 tons)
• Lift: 20'
• Chain Material: Load Chain Grade 80

Additional Specifications

• Standard lift: 20'
• Std drop: 20'
• No. chain falls: 1
• Overall Dimensions: 11-3/4" L x 11-1/4" W x 8-1/2" H
• Weight: 11-3/4" L x 11-1/4" W x 8-1/2" H
