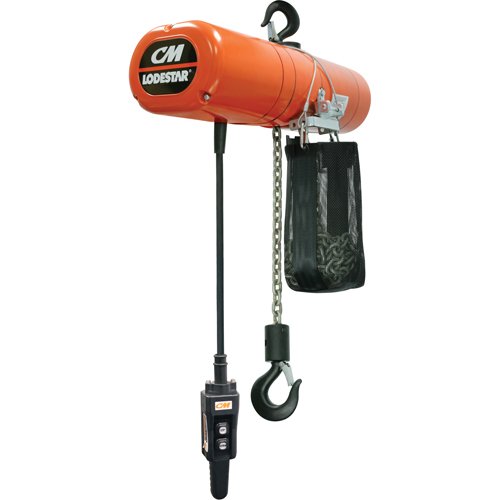

LT631-Lodestar Electric Chain Hoists

• Features quiet operation, an environment friendly design, easy access to components, high duty cycles, along with less maintenance and enhanced safety features
• Lifetime grease-lubricated gear box
• 5-pocket liftwheel
• Zinc-plated chain
• Precision gears
• Clutch is located outside the load path, preventing slipping of the load in an overload condition when the brake is not powered
• Fabric chain container and rigid hook suspension standard on every Lodestar
• Hook mount standard, lug mount available upon request
• Lifetime warranty
• CSA approved and meets ASME B30.16
• AC electrical brake or double DC brake available
• Variable speed drive (VFD) or traditional 2 speeds available ; Note: Additional lifts & capacities available on request

Specifications

• Capacity: 4000 lbs. (2 tons)
• Lift: 10'
• Max Lift Speed (ft./min): 16 FPM
• Min Lift Speed (ft./min): 16 FPM
• Voltage: 575V
• Chain Material: Steel
• Phase: 3

Additional Specifications

• Standard lift: 10'
• Weight: 135 lbs.
• Manufacturer's Warranty: Lifetime
