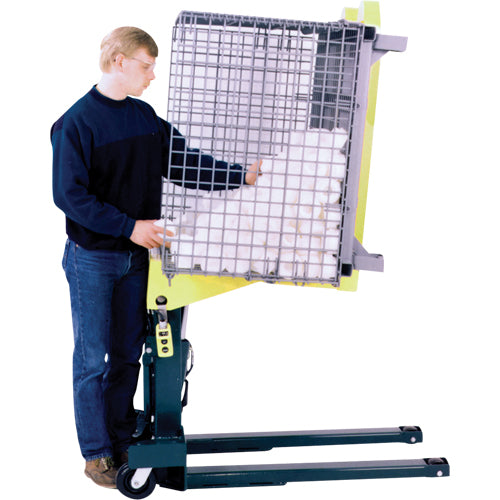

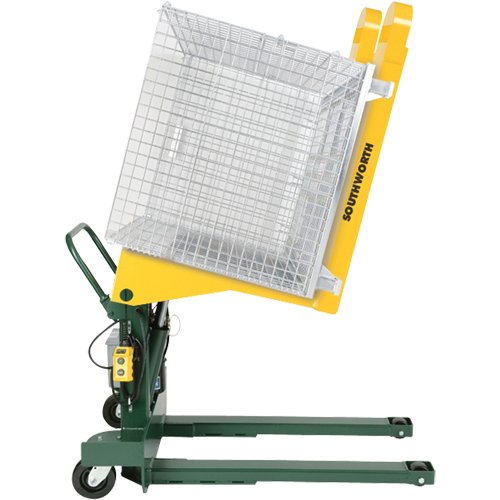

LT588-Portable Hydraulic E-Z Reach Tilter

• Collapsible pushbar
• 1/2 HP TENV electric motor and 0.4 GPM hydraulic pump
• NEMA 4 hand held pushbutton includes a 10ft straight cord
• Parts & labor are warrantied for 2 years
• Green self-priming machinery enamel with tilting platform painted yellow
• Control Voltage: 115/1/60
• Floor Lock Included: Yes
• Primary Voltage: 115/1/60
• Rear Caster Size: 6"
• Tilt Time Down (seconds): 15
• Tilt Time Up (seconds): 37
• Weight: 800 lbs.

Specifications

• Dimensions: 40" L x 24-1/2" W
• Fork Length: 40"
• Capacity: 2000 lbs.
• Degree of Tilt: 85°
• Raised Height: 37"
• Lowered Height: 3.5"

Additional Specifications

• Handle Height: 31"
• Platform Dimensions: 40" L x 24-1/2" W
• Tilt Degree: 85
• Overall Height: 85
• Overall Length: 51"
• Overall Width: 34"
• Outside Fork Clearance: 24.5"
• Inside Fork Clearance: 11.5"
• Front Roller Size: 3.25"
