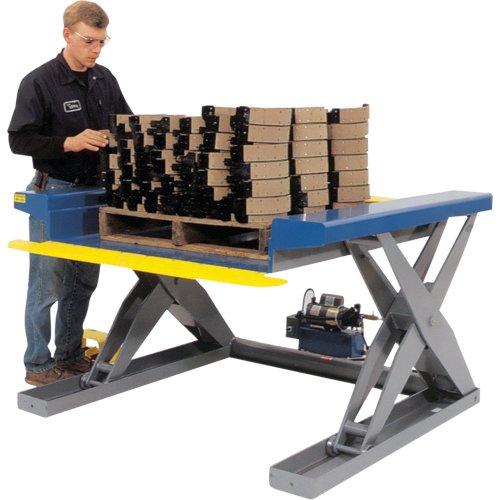

LT587-Hydraulic Floor-Height Scissor Lift Tables

• Flexible lip on leading edge of platform
• Adjustable with a pressure sensitive flow control
• 1.0 HP TENV electric motor and 0.85 GPM hydraulic pump, valving, and reservoir filled with oil
• NEMA 1 footswitch with safety cover includes a 10ft straight cord
• Two low pressure cylinders with chrome plated rod, power up/gravity down
• All pivot points are equipped with Teflon lined bishings
• Parts & labor are warrantied for 2 years
• Light gray self-priming machinery enamel for base and legs with platform painted OSHA blue

Specifications

• Platform Dimensions: 50" W x 48" L
• Capacity: 4000 lbs.
• Raised Height: 35.375"
• Lowered Height: 0.375"
• Frame Material: Steel

Additional Specifications

• Base Length: 53"
• Base Width: 67.25"
• Overall Height: 7.75"
• Overall Length: 59"
• Overall Width: 59"
• Vertical Travel: 35"
• Elevating Time (seconds): 48
• Primary Voltage: 115/1/60
• Weight: 1440 lbs.
