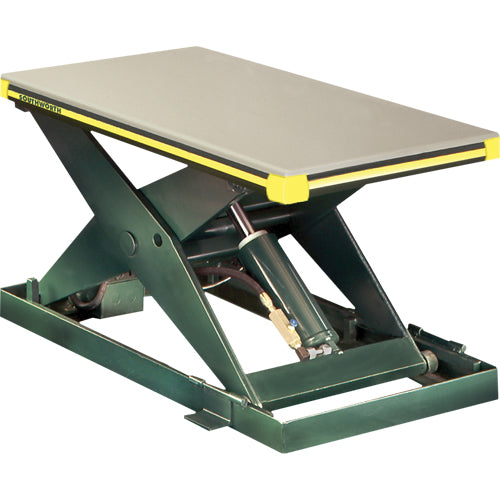

LT584-Hydraulic Backsaver Scissor Lift Table

• Smooth plate with comfort edge platform
• Adjustable with a pressure sensitive flow control
• 1.0 HP TENV electric motor and 0.85 GPM hydraulic pump, valving, and reservoir filled with oil
• NEMA 1 footswitch with safety cover includes a 10ft straight cord
• One 3 1/2" low pressure cylinder with chrome plated rod, power up/gravity down
• All pivot points are equipped with Teflon lined bishings
• Leg rollers include wear indicators
• Parts & labor are warrantied for 2 years
• Dark green self-priming machinery enamel with platform painted beige

Specifications

• Platform Dimensions: 24" W x 48" L
• Capacity: 2000 lbs.
• Raised Height: 42.75"
• Lowered Height: 6.75"
• Frame Material: Steel

Additional Specifications

• Base Length: 48"
• Base Width: 24"
• Vertical Travel: 36"
• Elevating Time (seconds): 21
• Primary Voltage: 21
• Control Voltage: 115/1/60
• Weight: 600 lbs.
• Manufacturer's Warranty: 2 Years
