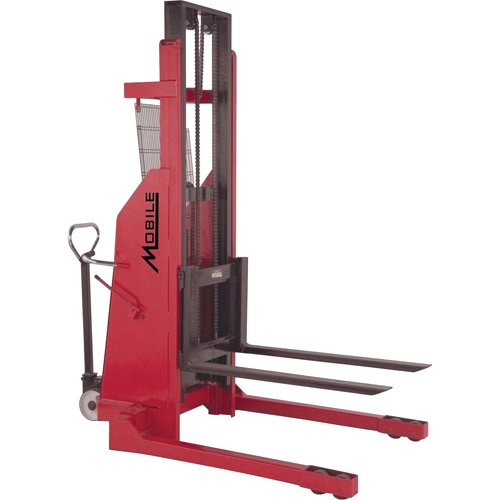

LT401-Hydraulic Stacker

• TELESCOPIC (TWO STAGE) STACKERS
• Rugged frame construction
• Solid steel adjustable forks
• Designed for pallet loading and removal from racking storage even in the smallest storage spaces
• Manually propelled with electric powered hydraulic lift
• Battery powered is standard (AC power available)
• Automatic built-in battery charger included
• Other capacities available
• Self propelled units available upon request ; ; PLEASE SPECIFY WHEN ORDERING: Single stage stacker between 38" and 50" Telescopic stacker between 42" and 54" ; ; Note: Inside straddle dimension is recommended to be 2" greater than the overall pallet width (outside straddle is 6" greater than straddle inside dimension).
• FOB Mississauga, ON

Specifications

• Lifting Capacity: 1500 lbs.
• Raised Height: 144"
• Lowered Height: 3"
• Operation Type: Electric

Additional Specifications

• Clearance of Top Mast: 94"
• Weight: 924 lbs.
• Fork length: 42"
• Straddle Length: 42"
• Load centre: 42"
