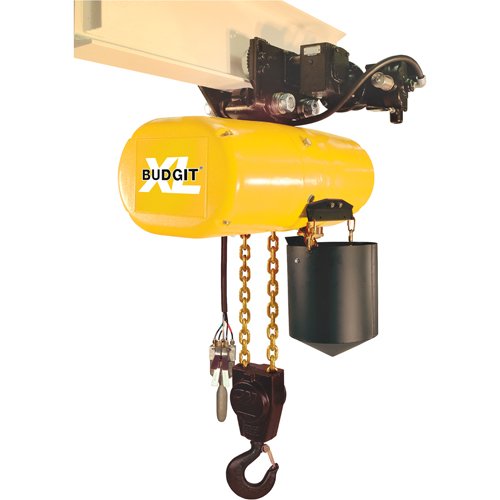

LS956-XL Series Air Chain Hoists

• The heavy-duty motor and gearing assure reliable load lifting, day after day, even under tough conditions
• Forged 10-pocket oblique-lay lift wheel for smooth chain operation, constant chain speed and reduced chain wear
• Gearing operates in oil bath; designed for exceptionally long life and quiet operation
• Heavy-duty multiple disc braking system
• Hardened, forged steel, latch type hooks
• Hoistaloy® load chain for long, dependable service
• Standard protector overload device
• Standard screw-type limit switches
• Easy installation and maintenance
• Provides high reliability and long life
• Rated H-4, heavy-duty
• Factory tested at 125% of rated capacity prior to shipment
• 10' of lift -Chain container not included Motor driven trolley shown

Specifications

• Capacity: 6000 lbs. (3 tons)
• Lift: 10'
• Chain Material: Steel
• Lift Speed (ft./min): 21 FPM

Additional Specifications

• Mounting Type: HOOK MOUNTED
• Weight: 421 lbs.
