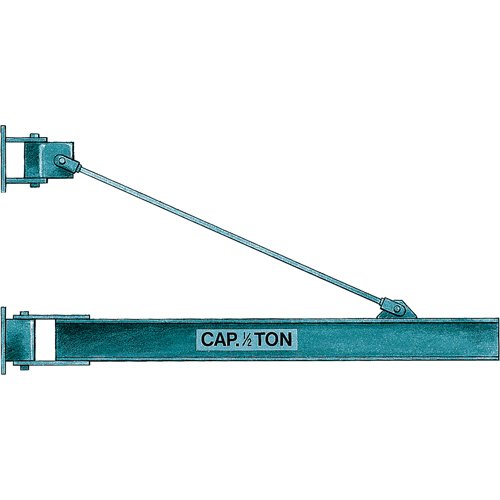

LA786-Wall Jibs

• Mount at any height on a wall, column or building support
• Wall mounting gives 180° rotation, column mounting provides 220° of rotation
• Equipped with end stops to limit trolley travel
• H-Beams use flat-wheel trolleys; I-Beams use taper-wheel trolleys
• Easily adjustable tie rod jibs are designed to mount within inches of any overhead obstruction
• F.O.B. Vaudreuil, Quebec

Specifications

• Max. Capacity: 4000 lbs. (2 tons)
• Flange Width: 4-5/8"
• Beam Type: I

Additional Specifications

• Dimensions A: 8'
• Dimensions B: 10"
• Dimensions C: 36"
• Weight: 395 lbs.
• 395 lbs.
