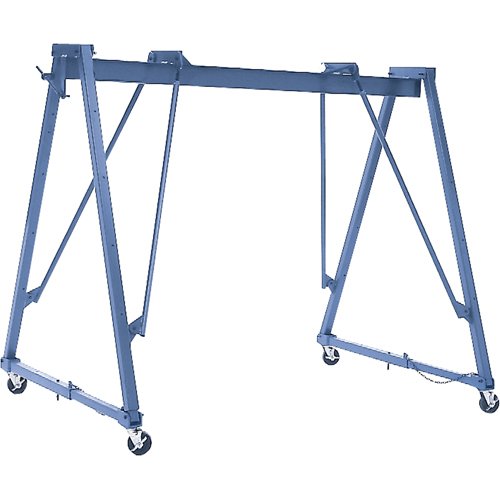

LA190-Adjustable Gantry Cranes

• Adjustable gantry cranes move and lift heavy equipment with ease
• Height adjustable between 8' and 14'
• Equipped with four heavy-duty steel swivel casters with wheel brakes
• H-Beams use flat-wheel trolleys; I-Beams use taper-wheel trolleys.
• Can be fitted with or without casters
• Shipped knocked down
• F.O.B. Vaudreuil, Quebec

Specifications

• Capacity: 2000 lbs. (1 tons)
• Overall Beam Length: 15'
• Max. Height Clearance: 13.625'
• Min Height Clearance: 8.75'

Additional Specifications

• O.A. Span A': 15
• Clear Span B: 9'7"
• Hook Lift Min/Max C: 6'6"/11'10"
• O.A. Height Min/Max D: 8'9"14'7"
• Beam Height E: 8'9"14'7"
• Wheel Spread Min/Max F: 4'7"/7'
• Unit Beam Width: 5.25"
• Weight: 1050 lbs.
• Note: Crane only, hoist and trolley not included
