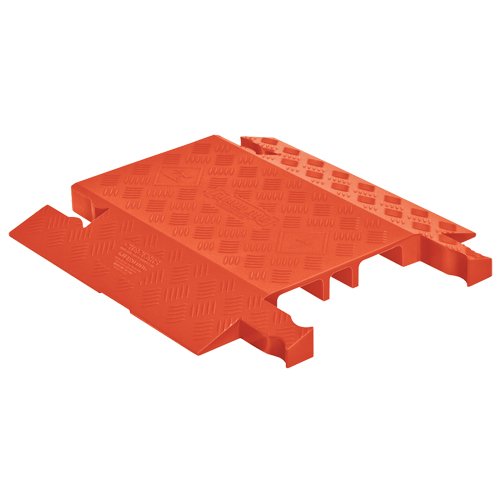

KI127-Guard Dog® Cable Protector

• Features drop-over design for quick cable set-up and disassembly
• Ideal to protect pipes, cables and hose lines that are mounted to the ground
• Features patented 5-bar tread plate surface for maximum traction
• Includes 2 extra wide channels to accommodate various line sizes
• Ideal for public, commercial and industrial applications
• Features modular interlocking design

Specifications

• No. of Channels: 3
• Length: 18"
• Width: 20"
• Height: 1.87"
• Channel Width: 3.2"
• Channel Height: 1.325"
• Max. Load Capacity / Tire: 10500 lbs. (5.25 tons)
• Max. Load Capacity / Axle: 21000 lbs. (10.5 tons)

Additional Specifications

• Connector Type: Dog bone connector
• Material: Polyurethane
• Colour: Orange
• Weight: 9 lbs.
• 9 lbs.
