ID704 - 600A Auto-Ranging TRMS Clamp Meter

Description

• Clamp meter with True RMS provides accurate and reliable measurements across various applications
• Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle
• Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
• Illuminated dial ensures clear visibility and easy reading, even in low-light environments
• Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
• Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
• Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)
• Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
• Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation

Additional Specifications

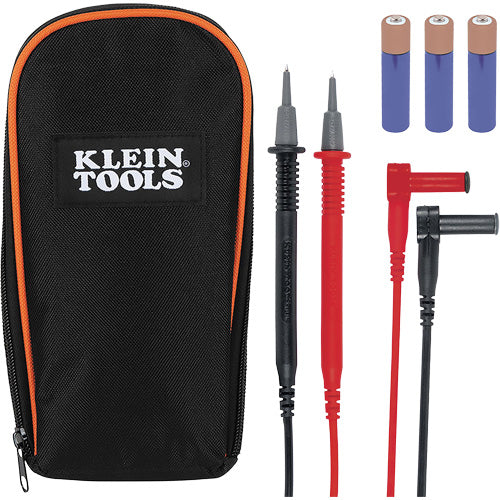

• Includes: Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; (3) AAA Batteries
• Jaw Size: 1.4"
• Display: Transflective Reverse-Contrast with 6000 Count LCD
• Capacitance: 6000 µF
• Ohms (Resistance): 60 MΩ
• Voltage: 1000V AC; 1000V DC
• DC Micro-Amp: Yes
• Temperature Range: -40° - 1832°F (-40° - 1000°C)
• Current: 600 A
• Frequency: 10 Hz -60 kHz
