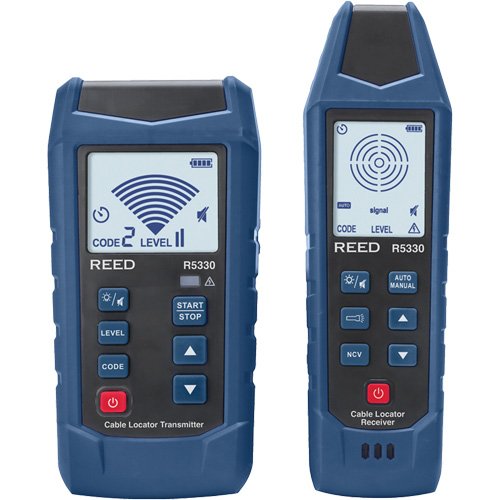

ID645 - Advanced Cable Locator

ID645 - Advanced Cable Locator

by Reed Instruments
SKU: ID645
$244.40 - $244.40
$244.40
$244.40 - $244.40
$244.40

Description

  • Offers high-precision wire and conductor tracing with adjustable sensitivity
  • LCD screens display signal strength, transmission code, and voltage presence
  • Coded transmission for increased precision
  • Audible and visual signal strength indicators with variable tone
  • Adjustable sensitivity
  • Backlit LCD
  • Integrated flashlight supports applications in low lit environments
  • Built-in non-contact voltage detector
  • Low battery indicator and auto shut-off
  • Includes: Transmitter; Receiver; In-line Test Leads; Alligator Clips; Lantern-Tip Test Probes; Ground Rod; Batteries; Carrying Case
  • Transmitter External Voltage: 8 to 480V
  • Output Signal Frequency: 33kHz
  • Display Type: LCD
  • Adjustable Sensitivity: 3 Levels
  • Power Supply: (6) AA Batteries
  • Battery Life: 10 hours
  • Standard(s) Met: CE, UKCA, RoHS
  • Receiver Detection Depth: Single Pole: 0 to 2.5m, Double Pole: 0 to 0.5m, Voltage Detection: 0 to 0.4m
    •
