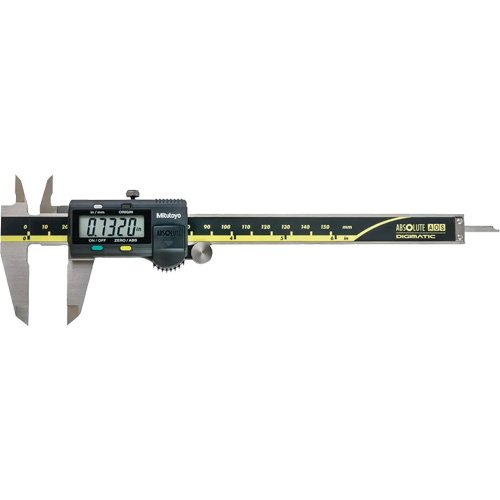

ID580 - Absolute Digimatic Caliper

ID580 - Absolute Digimatic Caliper

by Mitutoyo
SKU: ID580
$410.65 - $410.65
$410.65
$410.65 - $410.65
$410.65

Specifications:

  • Resolution: 0.0005" (0.01 mm)
  • Measuring Range: 0 - 8" (0 - 200 mm)
  • Accuracy ±: 0.001" (0.02 mm)

Description

  • ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
  • Stainless steel construction protects caliper components and ensures accurate performance for longer duration
  • Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion
  • Alarm: Low Voltage, counting value composition error
  • A battery life of approximately 3.5 years has been achieved under normal use
  • The slider configuration features an ergonomic, thumb-friendly shape
  • Step-measurement capable
  • Font height of 0.35" (9 mm) alleviates fatigue with the high-contrast LCD
  • Repeatability: 0.0005" (0.01 mm)
  • Units: Inch/metric
  • Maximum Response Speed: Unlimited
  • Display : LCD
  • Battery Type: SR44 938882
  • Battery Life: Approximately five years under normal use
    •
