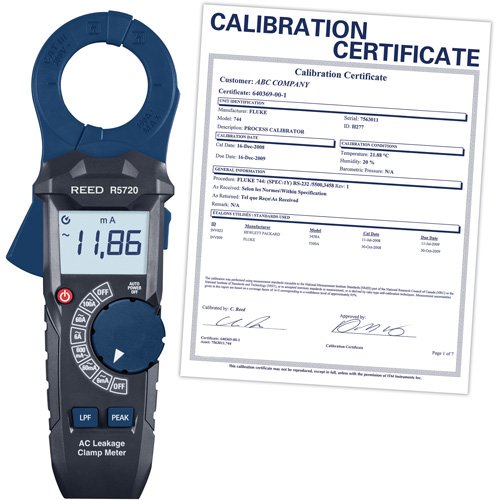

ID574 - AC Leakage Clamp Meter with Calibration Certificate

ID574 - AC Leakage Clamp Meter with Calibration Certificate

by Reed Instruments
SKU: ID574
$334.32 - $334.32
$334.32
$334.32 - $334.32
$334.32

Specifications:

  • Display Type: Digital
  • Max. Load Current: 100 A

Description

  • This AC Leakage Clamp Meter is a professional-grade tool designed for precise AC current measurements, supporting ranges from 6 microamps to 100 amps
  • The R5720 offers high accuracy, low resolution and a low pass filter for measuring variable frequency equipment
  • 6000 count backlit LCD display
  • 1.26" (32mm) jaw size opening
  • True RMS AC measurements
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Cat. III 300V
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
  • Accuracy (50/60Hz): 100.0 A; 60.00 A: ±(1.5% rdg. +8 dgt.), 6.000 A; 600.0 mA; 60.00 mA: ±(1.0% rdg. +5 dgt.), 6.000 mA: ±(1.0% rdg. +8 dgt.)
  • Operating Temperature: 41 to 104°F (5 to 40°C)
    •
