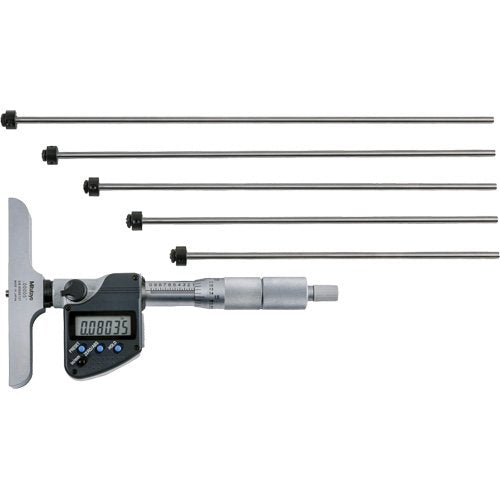

ID563 - Digital Depth Micrometer with Interchangeable Rod

ID563 - Digital Depth Micrometer with Interchangeable Rod

by Mitutoyo
SKU: ID563
$969.60 - $969.60
$969.60
$969.60 - $969.60
$969.60

Specifications:

  • Measuring Range: 0" - 12" (0 mm - 304.8 mm)
  • Resolution: 0.00005" (0.001 mm)

Description

  • Comes equipped with 12 rods that feature a measuring range of 0 to 12" (0 to 304.8 mm)
  • Can be used for a wide variety of measurements
  • The rod length can be adjusted in 1" (25 mm) increments
  • Ratchet stop for constant force
  • Measuring rod clamp
  • SPC output
  • Digit counter
  • Includes: (1) Micrometer; (12) Rods; (1) Carrying Case
  • Graduation: 0.001" (0.01 mm)
  • Display: LCD
  • Battery Type: SR44, 938882
  • Battery Life: Approximately 1.2 Years Under Normal Use
  • Base Size: 4" x 0.63" (101.6 mm x 16 mm)
    •
