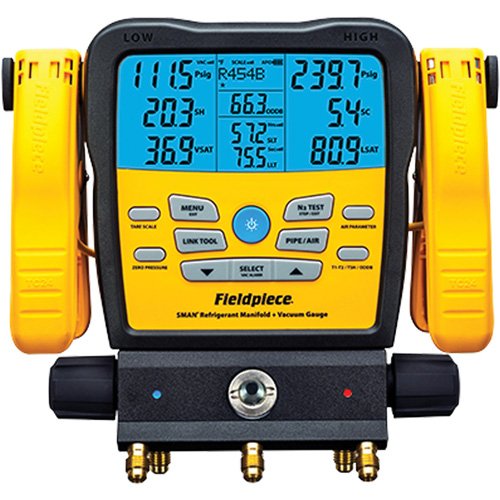

ID559 - 3-Port Wireless Digital Refrigerant Manifold

ID559 - 3-Port Wireless Digital Refrigerant Manifold

by TG Store
SKU: ID559
$1,081.33 - $1,081.33
$1,081.33
$1,081.33 - $1,081.33
$1,081.33

Description

  • Features an integrated vacuum gauge
  • Designed with low profile, lay-flat hose ports for added durability
  • Customizable auto power off, backlight duration
  • Customizable high and low vacuum alarms
  • Includes hermetically sealed sight glass to see refrigerant flow and condition
  • View wireless probe and scale readings
  • Logs up to 168 hours of data
  • Loaded with over 70 refrigerants, including A2Ls
  • Measurements can be viewed on a mobile device up to 1000 feet (305 meters) away
  • Runs a temperature-compensated nitrogen pressure test, with a timer
  • Protected thermocouple jacks for pipe and outdoor temps
  • Super rugged construction
  • Water-resistant (IP55)
  • Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® System App
  • Monitor and record refrigerant weight
  • Includes: SM382V 3-Port Manifold; (2) TC24 Wired Type-K Pipe Clamp Thermocouple; ATA1 Type-K Bead Thermocouple with Clip; ANC82 Easy-Open, Padded Case; (6) AA Alkaline Batteries; Operator's Manual
  • Manufacturer's Warranty: 1-Year
  • Port Type: (3) 1/4" Standard SAE Male Flare Fittings
  • Pressure Range & Units: 870 Psig (English), 60.00 Bar (Metric), 6.000 MPa (Metric), 6000 kPa (Metric)
  • Negative Pressure Range & Units: 29 inHg (English), 74 cmHg (Metric), 0.98 Bar (Metric)
  • Resolution: 0.1 Psig, 0.01 Bar, 0.001 Mpa, 1 kPa, 0.1 inHg, 1 cmHg
  • Negative Pressure Accuracy: 29 inHg to 0 inHg: ±0.2 inHg, 74 cmHg to 0 cmHg: ±1 cmHg0.98 Bar to 0 Bar ±0.01 Bar
  • Pressure Accuracy: ±1 Psig: 0 to 200 Psig, ±(0.3% of reading + 1 Psig): 200 to 870 Psig, ±0.07 Bar: 0 to 13.78 Bar, ±(0.3% of reading + 0.07 Bar): 13.78 to 60.00 Bar, ±0.007 MPa: 0 to 1.378 MPa, ±(0.3% of reading + 0.007 MPa): 1.378 to 6.000 MPa, ±7 kPa: 0 to 1378 kPa, ±(0.3% of reading + 7 kPa): 1378 to 6000 kPa
  • Max. Overload Pressure: 870 Psig (5998 kPa)
    •
