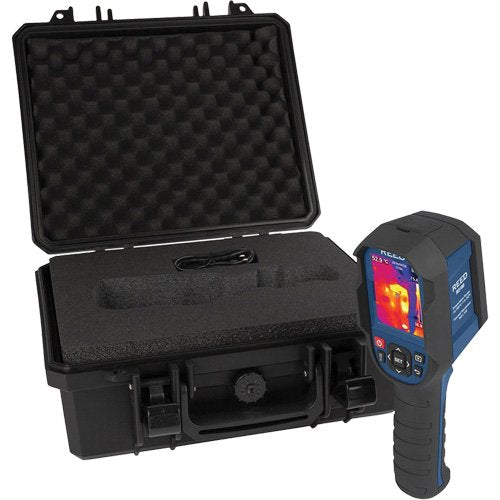

ID363-Thermal Imaging Camera Kit

• Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity
• Ability to display hot and cold spot temperatures on a 2.8" color LCD
• User can choose from 7 different colour palettes
• The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
• 2.8" color TFT display
• Built-in LED flashlight
• Intuitive on-screen measurement tools
• 3 image modes (Thermal, Visual Image, Thermal Blending)
• High and low-temperature spot and alarm indicators
• Rechargeable li-ion battery
• Tripod mountable for continuous long-term monitoring
• View, analyze stored data, and generate reports or projects in real-time
• Low battery indication and auto shut-off
• Professional grade, injection molded hard plastic case with customizable foam inserts
• O-ring creates watertight seal in hard carrying case
• Case features pressue equalization valve and double latch & lock system

Specifications

• Display Size: 2.8"
• Display Type: Built-in
• Resolution: 160 x 120 pixels
• Thermal Sensitivity: 50 mK
• Temperature Range: -10° - 400°C (14° - 752°F)

Additional Specifications

• Includes: REED R2165 Thermal Imaging Camera, USB Cable, 32GB Micro SD Card, Soft Carrying Case, Power Adapter, REED R8888 Medium Hard Carrying Case
• Field of View (FOV): 56 x 42°
• Optimal Focal Distance: 0.82' (0.25m)
• Spatial Resolution: (IFOV) 6.1mrad
• Image Capture Frequency: (IFOV) 6.1mrad
• Focus: Fixed
• Detector Type: Uncooled microbolometer, Focal plane array (UFPA)
• Spectral Range: 8 to 14µm
• Software OS Compatibility: Windows 7/8/10/11
