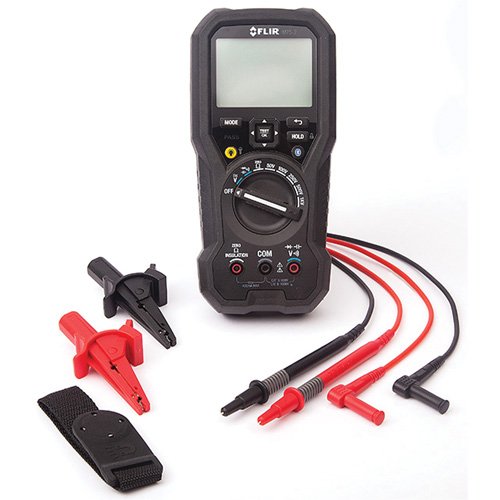

ID308 - Insulation Tester and Digital Multimeter with METERLiNK®

ID308 - Insulation Tester and Digital Multimeter with METERLiNK®

by FLIR
SKU: ID308
$1,008.11 - $1,008.11
$1,008.11
$1,008.11 - $1,008.11
$1,008.11

Specifications:

  • Display Type: Digital

Description

  • Both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals
  • Features several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance
  • Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment
  • The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible
  • Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing
  • Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals
  • Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 M to 20 G
  • Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
  • True RMS DMM measurements features reliable performance and 1000 V range
  • Powerful LED worklights eliminate the need for a flashlight in dim lighting
  • Durable, double-molded construction with IP54 rating and 3 m drop tested
  • Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible
  • Capture readings, create reports and easily share them with your team
  • Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures
  • Insulation Resistance: 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
  • AC Voltage: 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits)
  • DC Voltage: 1000.0 V ± (0.1% + 5 digits)
  • Max. Bluetooth Range : 10 m (32 ft)
  • Memory: 99 Storage Locations
  • Battery Type: (6) 1.5 V AAA Alkaline Batteries
  • Certification(s): FCC Class B, CE, UL, UKCA, RCM
  • Drop Test: 3 m (9.8 ft)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    •
