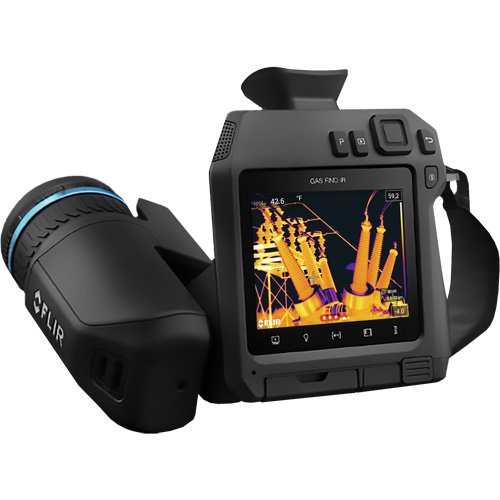

ID286 - GF77 Gas Find IR with 25° LR, 25° HR & 6° HR Lens

ID286 - GF77 Gas Find IR with 25° LR, 25° HR & 6° HR Lens

by FLIR
SKU: ID286
$64,387.33 - $64,387.33
$64,387.33
$64,387.33 - $64,387.33
$64,387.33

Specifications:

  • Display Size: 4"
  • Display Type: Built-in
  • Resolution: 320 x 240 pixels
  • Thermal Sensitivity: 25 mK/40 mk

Description

  • A ground-breaking uncooled optical gas imaging camera with interchangeable lens options that detect methane, sulfur hexafluoride (SF6), ethylene, ammonia, and other gas emissions
  • Capable of both gas detection and radiometric temperature measurement for thermal inspections, the GF77 is ideal for electric power utilities, oil and natural gas operations, chemical/manufacturing facilities, the food and agriculture industry, and first responders
  • This affordable solution offers the benefit of built-in thermographic calibrations and the flexibility to detect a wide range of gases by simply changing lenses
  • Includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator
  • Safely locate gas leaks and perform accurate thermal inspections using one camera
  • From laser-assisted autofocus to 1-Touch Level/Span contrast enhancement, the GF77 offers the latest high-tech features while remaining affordable
  • Work easier with the ergonomic design, tools to organize findings in the field such as GPS, Wi-Fi, and annotation, plus rapid-reporting capabilities
  • Gas Sensitivity (NECL): LR lens: CH₄: <100 ppm × m, N₂O: <75 ppm × m, CH₈: <400 ppm × m, SO₂: <30 ppm × m, R-134a: <20 ppm × m, R-152a: <100 ppm × m, HR lens: SF6: <1 ppm × m, C₂H₄: <20 ppm × m, NH: <20 ppm × m, R-12: <4 ppm × m (ΔT = 10°C, Distance = 1 m)
  • Detector Pitch: 25 µm
  • Accuracy: ≤100 °C ±3°C (±5.4°F), >100°C ±3% for Ambient Temperature 15 to 35°C (59 to 95°F)
  • Spectral Range: LR: 7-8.5 µm, HR: 9.5-12 µm
  • Field of View (FOV): 25° Lens: 25° × 19°, 6° Lens: 6.4° × 4.9°
  • Focal Length: 25° Lens: 18 mm (0.71 in.), 6° Lens: 74 mm (2.9 in.)
  • Image Frequency: 30 Hz
  • Min. Focus Distance: 25° Lens: 0.3 m (0.98 ft), 6° Lens: 5 m (16.4 ft)
  • Battery Operating Time: >4 hours at 25°C (68°F) with Typical Use
    •
