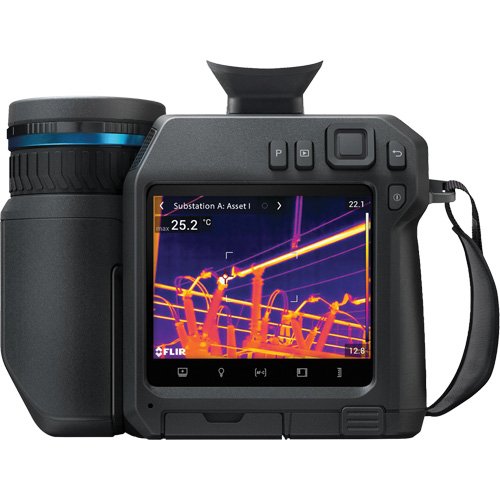

ID265 - T865 High-Performance Handheld Infrared Camera with 14° & 42° Lens

by FLIR
SKU: ID265
Original price $46,758.33 - Original price $46,758.33
Original price
$46,758.33
$46,758.33 - $46,758.33
Current price $46,758.33

Specifications:

  • Display Size: 4"
  • Display Type: Built-in
  • Resolution: 640 x 480 pixels
  • Thermal Sensitivity: 30 mK/50 mK
  • Temperature Range: -40° - 2000°C (-40° - 3632°F)

Description

  • A non-contact inspection tool with 180° rotating optical block that allows users to safely and comfortably assess the condition of critical electrical and mechanical equipment in utility and manufacturing applications
  • With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as 1°C/1%, 1-Touch Level/Span contrast enhancement, and laserassisted autofocus, you'll get highly accurate temperature measurements every time
  • Pair the T865 with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning; or choose a 6° FOV IR lens to perform inspections on small targets from long distances
  • The on-board Inspection Route system helps you record temperature data and imagery in a logical sequence for faster troubleshooting and repair
  • Develop inspection routes in FLIR Thermal Studio Pro and upload to a T865 using Route Creator to quickly and easily collect and manage critical data
  • Assess the state of equipment from a safe distance, at any angle, or in any lighting condition using the 180° rotating optical block, integrated eyepiece viewfinder, and 4inch color IPS display
  • Increase infield efficiency with exceptional measurement accuracy, enhanced thermal imagery, and workflow optimizations to save time and share data faster
  • Accuracy: ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): –40 to 100°C (–40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F), ±3%: 1800 to 2000°C (3272 to 3632°F) with 42° lens
  • Colour Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
  • Image Frequency: 30 Hz
  • Minimum Focus Distance: 42°: 0.15 m, 14°: 1 m
  • Spectral Range: 7.5-14 µm
  • Measurement Presets: No Measurement, Centre Spot, Hot Spot, Cold Spot, User Preset 1, User Preset 2
  • Battery Operating Time: Approx. 4 Hours at 25°C (77°F) Ambient Temperature & Typical Use
  • Battery Type: Li-ion Battery
  • Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
