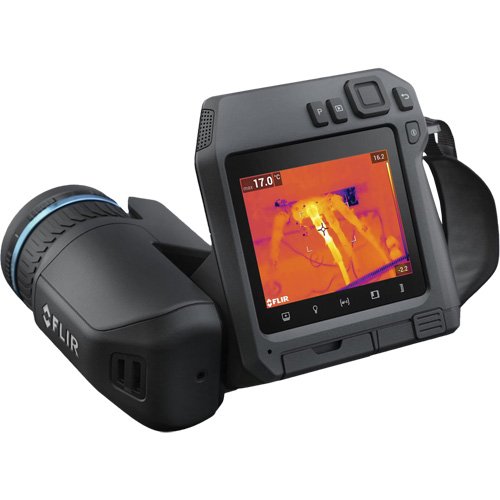

ID170-T540-24 Professional Thermal Imaging Camera with 24° Lens

• Analyze images, quickly build reports, and keep customers informed with rapid Wi-Fi uploads, customized work folders, and streamlined reporting features that make your job easier
• Precise laser-assisted focus ensures you record tack-sharp images, for the most accurate temperature readings
• Bright LED work lights improve image clarity in dim areas
• Vibrant, 4" (101.6 mm) optically-bonded PCAP touchscreen
• Separate autofocus and image recording buttons
• Speaker plays back voice annotation
• Microphone for voice annotation
• Li-ion battery for extended use times
• Scratch-resistant Dragontrail™ glass
• 5 MP digital camera now closer to thermal detector for superior MSX® enhancements
• Focus ring
• Image archive button
• Navigation pad with center push
• Back, save, autofocus, and on/off buttons
• Light sensor
• Attachment point for the neck strap
• Laser transmitter and receiver
• Change from wide area scanning to telephoto instantly with the FlexView™ dual field-of-view lens
• Get industry-leading image clarity from Vision Processing™ through the power of patented MSX®, UltraMax®, and proprietary adaptive filtering

Specifications

• Display Size: 4" L x 4" W
• Display Type: Built-in
• Resolution: 464 x 348 pixels
• Temperature Range: -20° - 120°C (-4° - 248°F)/0° - 650°C (32° - 1202°F)/300° - 1500°C (572° - 2732°F)

Additional Specifications

• Includes: (1) Infrared Camera, (1) 24° Lens, (1) Front Lens Cap, (1) 8 GB SD Card, (1) USB 2.0 A to USB Type-C Cable, (1) USB Type-C to HDMI Cable, (1) USB Type-C to USB Type-C Cable, (1) Set of lanyards, (1) Hard Carrying Case, (2) Batteries, (1) Battery Charger, (1) Power Supplies, (1) Printed Documentation, (1) FLIR Thermal Studio Pro + Route Creator Plugin License Card (Three Months)
• Resolution with UltraMax Enhancement: 645,888 effective pixels
• Digital Zoom: 1-6x continuous
• Detector Type and Pitch: Uncooled microbolometer, 17 μm
• Spectral Range: Uncooled microbolometer, 17 μm
• Spotmeter and Area: Three each in live mode
• Accuracy: ±3.6°F (±2°C) or ±2% of reading
• Focus: Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
• Image Frequency: 30 Hz
