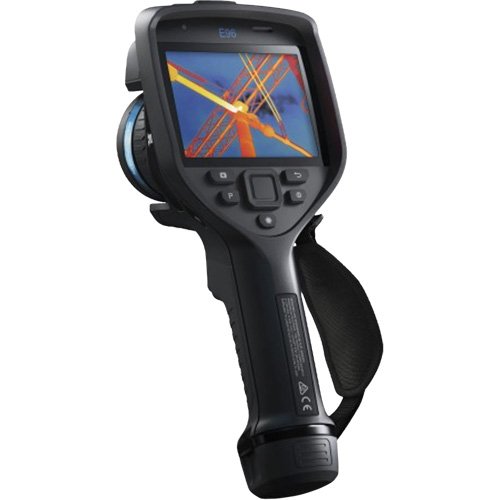

ID168-E96 Advanced Thermal Imaging Camera with 24° Lens

• Innovative pistol-grip camera with 640 x 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures
• Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement
• Comes with FLIR Ignite cloud connection for easy and secure image storage and sharing
• The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations (first created in Thermal Studio Pro sold separately)
• The 640 x 480 thermal resolution plus UltraMax and MSX image enhancement ensure the camera produces the most vibrant, easiest-to-interpret images in its class
• Interchangeable, auto-calibrating lenses - from telephoto to wide-angle - allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly
• Onboard integration with routing software, a built-in mic for voice annotation, and report generation features all help the camera streamline your workday
• The higher resolution detector allows inspectors to stand at a safe distance when surveying potentially hazardous targets
• Thermal sensitivity of <30 mK at 86°F (30°C)

Specifications

• Display Type: Built-in
• Resolution: 640 x 480 pixels
• Thermal Sensitivity: <30 mK
• Temperature Range: -20° - 120°C (-4° - 248°F)/0° - 650°C (33° - 1202°F)/300° - 1500°C (572° - 2732°F)

Additional Specifications

• Includes: (1) Thermal Camera, (1) 24° Lens, (1) 8 GB SD Card, (1) USB 2.0 A to USB Type-C Cable, (1) USB Type-C to HDMI Adapter,‎ Standard Specification UH311, (1) USB Type-C to USB Type-C Cable (USB 2.0 Standard), (1) Set of screws, (1) Accessory Box II, (1) Accessory Box III, (1) Torx T10 Wrench, (1) Carabiner Hook, (1) Front Protection, (1) Front Protection Fastener, (1) Lanyard Strap,‎ Camera, (1) Lens Cap Strap, (1) Wrist Strap, (1) Lens Cap,‎ Front, (1) Hand Strap, (1) Hand Strap Bracket, Left and Right, (1) Hard Carrying Case, (1) Power Supply for Battery Charger, (1) Power Supply, (1) Battery Charger, (2) Batteries, (1) Printed Documentation, (1) FLIR Thermal Studio Starter
• Resolution with UltraMax Enhancement: 1.2 megapixels
• Built-in Visual Camera: 5 MP, fixed focus, with built-in LED light
• Digital Zoom: 1-8x continuous
• Focus Modes: 1-8x continuous
• Accuracy: ±3.6°F (±2°C) or ±2% of the reading
• Communication Modes: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Display: 640 x 480 pixels (VGA) Dragontrail® touchscreen
• Battery Operation Time: >2.5 hours, typical use
