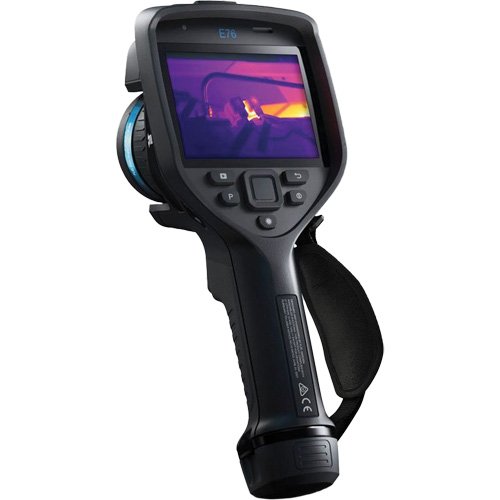

ID158-E76 Advanced Thermal Imaging Camera with 24° Lens

• Designed to cover near and distant targets, this 320 x 240-pixel camera features a 24° lens, a 4 to 1202°F (-20 to 650°C) temperature range, laser-assisted autofocus, and three area measurement boxes
• This camera comes with FLIR Ignite cloud connection for easy and secure image storage and sharing
• Provides complete coverage of near and far targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections, all performed from a safe distance
• It comes equipped with an optional temperature range to 1832°F (1000°C), laser-assisted autofocus, and three area measurement boxes, along with a 320 x 240 thermal resolution to produce crisp, vibrant imagery that can be enhanced with MSX® technology for added detail and perspective
• The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations

Specifications

• Display Type: Built-in
• Resolution: 320 x 240 pixels
• Thermal Sensitivity: 30 mK
• Temperature Range: -20° - 650°C (-4° - 1202°F)

Additional Specifications

• Accuracy: ±3.6°F (±2°C) or ±2% of the Reading
• Focus Modes: Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast, Manual
• Digital Zoom: 1 to 4x Continuous
• Communication Modes: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Display: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
• Battery Operation Time: >2.5 Hours, Typical Use
• Dimensions: 11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm)
• Weight: 2.2 lbs. (0.99 kg)
