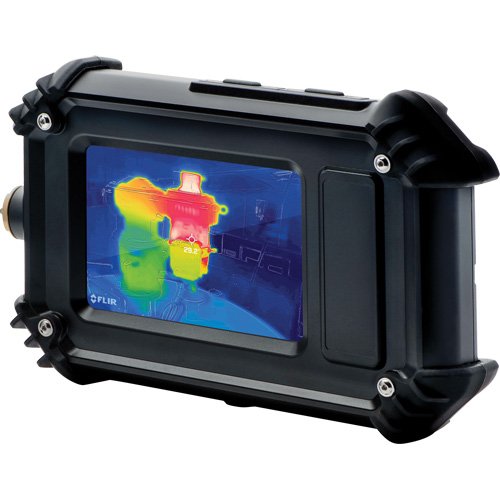

ID143-Cx5 Hazardous Location-Rated Thermal Camera

• Certified for use in many explosive environments, eliminating the need to acquire hot work permits due to gas, vapor, and dust, while making T-Class surveys quick and easy
• With FLIR MSX® (Multi-Spectral Dynamic Imaging) and 1-Touch Level/Span, the Cx5 can help you identify potential problems quickly to improve plant performance
• The 3.5-inch touchscreen interface is simple to use, and 160 × 120 thermal resolution gives you accurate temperature measurement of nearby targets
• Built-in FLIR Ignite™ cloud service provides direct data transfer, storage, and backup, so images are always available and securely stored on all your devices
• With the FLIR Cx5 in your toolbox, you’ll always be ready to investigate mechanical and electrical equipment around your production site
• Investigate potential problems from a safe distance using FLIR MSX, 160 × 120 true thermal imaging, and 1-Touch Level/Span
• Wirelessly upload and share data, images, and files to the FLIR Ignite™ cloud, and synchronize the camera with FLIR Thermal Studio software for the most powerful thermography analysis and report generation

Specifications

• Display Size: 3.5"
• Display Type: Built-in
• Resolution: 160 x 120 pixels
• Thermal Sensitivity: 70 mK
• Temperature Range: -10° - 50°C (14° - 122°F)

Additional Specifications

• Image Modes: Infrared Image, Visual Image, MSX (Embossed Visual Details on Thermal Image), Picture-in-Picture (IR Area on Visual Image)
• Colour Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
• Image Frequency: 8.7 Hz
• Spectral Range: 8 to 14 µm
• Camera Dimensions (L x W x H): 8 to 14 µm
• Battery Operating Time: 4 Hours
• Battery Type: Rechargeable Built-In Lithium Ion Battery
• Charging Time: 2 Hours
• Standard(s) Met: EN EIC 60079-0: 2018, IEC 60079-15: 2017, EN EIC 60079-31: 2014, IEC 60079-0: 2017, EN EIC 60079-15: 2019, IEC 60079-31: 2013
