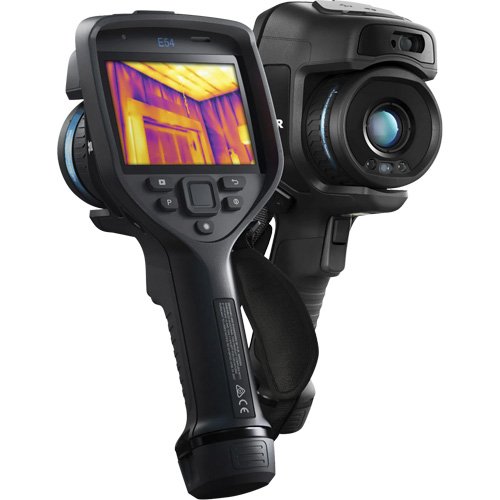

ID128-E54 Advanced Thermal Imaging Camera

• Offers the resolution and sensitivity you need for basic condition monitoring, electrical/mechanical inspection, and building inspection
• The 320 ×240 pixel thermal detector accurately measures temperatures up to 650°C (1202°F) and produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective
• The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations
• FLIR Ignite provides automatic uploading of E54 images directly from the camera to the cloud for easy, secure storage and sharing
• Use FLIR 1-Touch Level/Span to instantly improve image contrast and highlight potential electrical or mechanical issues
• The E54 measures up to 650°C (1202°F), offers 3 spotmeters, and displays the max/min temperature within an area live, on-screen
• Onboard integration with FLIR routing software (optional), automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E54 streamline your workday

Specifications

• Display Size: 4"
• Display Type: Built-in
• Resolution: 320 x 240 pixels
• Thermal Sensitivity: 40 mk
• Temperature Range: -15° - 50°C (5° - 122°F)

Additional Specifications

• Colour Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Detector Type/Pitch: Uncooled Microbolometer, 17 µm
• Digital Zoom: 1-4× Continuous
• Image Frequency: 30 Hz
• Minimum Focus Distance: 30 Hz
• Non-Radiometric IR Video Streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
• Spectral Range: 7.5-14 µm
• Measurement Presets: No Measurements, Center Spot, Hot Spot, Cold Spot, 3 Spots, Hot Spot–Spot
• Battery Operating Time: > 2.5 Hours at 25°C (68°F) & Typical Use
