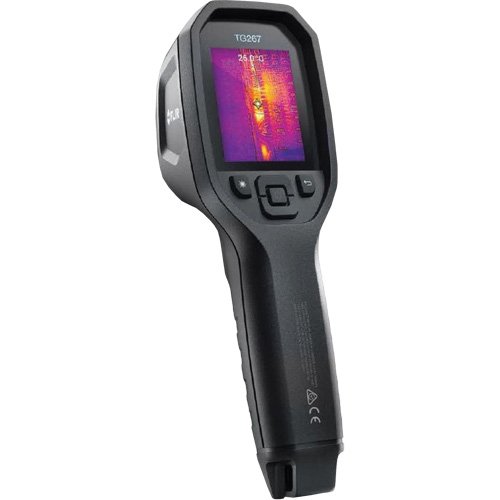

ID111-TG267 MSX® Thermal Camera

• Takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues
• Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting
• Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs
• Record images to monitor maintenance history and reassure your customer that problems have been resolved
• Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels)
• Display and record MSX®-enhanced thermal images or visual images with temperature readings
• Work safely and worry-free knowing that the IP54 enclosure can withstand a 2-meter drop and protect against dust and water

Specifications

• Display Size: 2.4"
• Display Type: Built-in
• Resolution: 320 x 240 pixels
• Thermal Sensitivity: 70 mK
• Temperature Range: -25° - 380°C (-13° - 716°F)

Additional Specifications

• IR Resolution: 160 × 120 pixels
• Field of view (FOV): 57° × 44°
• Colour Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
• Detector Pitch: 12 µm
• Image Frequency: 12 µm
• Min. Focus Distance: 0.3 m (0.98 ft)
• Min. Measurement Distance: 0.26 m (0.85 ft)
• Spectral Range: 7.5 - 14 µm
• Battery Charge Life: 30 Days Min.
