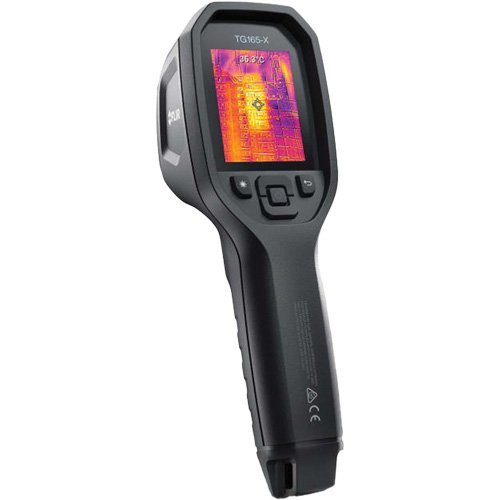

ID110-TG165-X MSX® Thermal Camera

• Helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks
• This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer
• See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images
• The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free
• With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box
• Speed inspections with a thermal view that tells you instantly whether a target is overheating and provides measurements up to 300°C (572°F)
• Target the area that you’re measuring using the bullseye laser pointer and capture thermal MSX and visual images with a simple trigger-pull
• Easily view live images on 2.4-in. display and see into dark or hard-to-reach areas with the bright LED work light

Specifications

• Display Size: 2.4"
• Display Type: Built-in
• Resolution: 1600 x 1200 pixels
• Thermal Sensitivity: 70 mK
• Temperature Range: -25° - 300°C (-13° - 572°F)

Additional Specifications

• IR Resolution: 80 × 60 pixels
• Field of view (FOV): 51° × 66°
• Colour Palettes: Iron, Rainbow, White Hot, Black Hot, Arctic, Lava
• Detector Pitch: 17 µm
• Image Frequency: 17 µm
• Min. Focus Distance: 0.3 m (0.98 ft)
• Min. Measurement Distance: 0.26 m (0.85 ft)
• Distance to Spot Ratio (D:S): 24:1
• Battery Charge Life: 30 Days Min.
