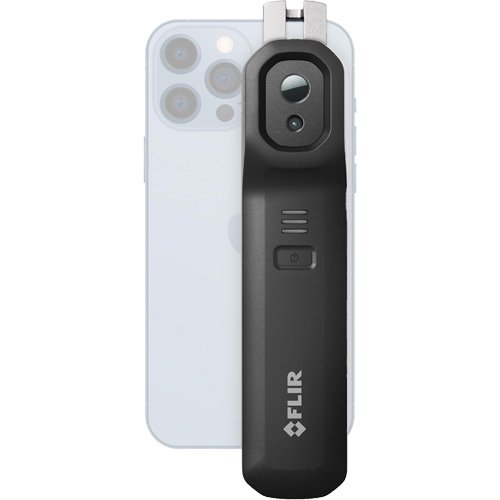

ID096-ONE® Edge Thermal Imager

• An innovative and rugged thermal imager that allows you to easily inspect hard-to-reach areas from any position or angle
• This thermal camera for smart phones connects wirelessly so you can inspect out-of-view targets – or clip it onto your phone or tablet for one-handed operation
• With FLIR MSX®, you can take detailed thermal images to help you clearly identify where a problem is located
• The FLIR ONE app provides guidance to help you troubleshoot and verify repairs in many do-it-yourself (DIY) and professional applications including home, automotive, commercial electrical, and mechanical inspection
• The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your team members
• All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use
• Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow

Specifications

• Display Size: None
• Display Type: IOS Smartphone/Android Smartphone
• Resolution: 640 x 480 pixels
• Thermal Sensitivity: 70 mK
• Temperature Range: -20° - 120°C (-4° - 248°F)

Additional Specifications

• Thermal Resolution: 80 × 60 (4,800 Pixels)
• Battery Life: Approx. 2 hours 30 minutes
• Accuracy: ±3°C (5.4°F) or ±5%
• Operating Temperature: -10°C to 50°C (14°F to 122°F), Battery Charging 0°C to 45°C (32°F to 113°F)
• Adjustable MSX Distance: -10°C to 50°C (14°F to 122°F), Battery Charging 0°C to 45°C (32°F to 113°F)
• Frame Rate: 8.7 Hz
• HFOV/VFOV: 54° ±1° / 42° ±1°
• Image Modes: MSX, Infrared, Visual
• Standard(s) Met: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU
