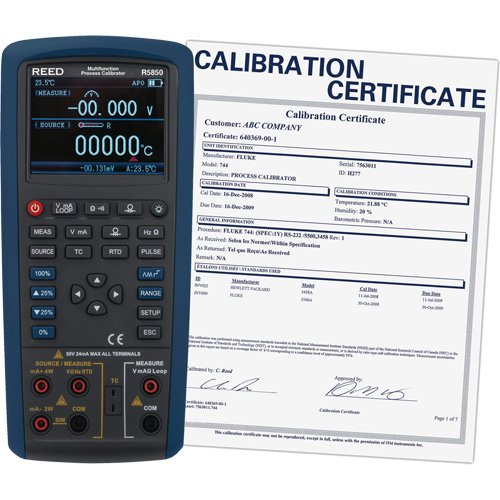

ID092-Multifunction Process Calibrator with ISO Certification

• Rugged design stands up to field use
• Measures/Sources volts, mA, RTDs, thermocouples, frequency, and ohms
• 0.02% output and measurement accuracy
• Easy-to-read measure/source screen lets you view input and output simultaneously
• Perform fast linearity tests with auto step and auto ramp features
• Powers transmitters during the test using a loop supply with simultaneous mA measurement
• Measures and outputs 10 types of RTDs and 12 types of TC signals
• Rechargeable Ni-MH battery
• Adjustable brightness provides better visibility in poor light
• Store frequently-used test setups for later use
• Low battery indicator and auto shut-off

Specifications

• Portable/Bench top: Portable
• Data Logging/ Without Data Logging: Without Data Logging
• No. of Processes: 5

Additional Specifications

• DC Voltage: Range: 50, 500mV, 30V (upper display), 50V (lower display); Resolution: 0.001, 0.01, 1mV, 0.001V; Accuracy: 50mV: ±(0.02% +10), 500mV: ±(0.02% +5), 30V (upper display): ±(0.02% +2), 50V (lower display): ±(0.02% +2)
• DC Current: Range: 20mA at 0 to 24mA, Resolution: 0.001mA, Accuracy: ±(0.02% +2)
• Loop Current: Range: 20mA (loop) at 0 to 24mA, Resolution: 0.001mA, Accuracy: ±(0.02% +2)
• Resistance: Range: 500, 5000Ω, Resolution: 0.01, 0.1Ω, Accuracy: ±(0.05% +10)
• Frequency: Range: 500, 5000Ω, Resolution: 0.01, 0.1Ω, Accuracy: ±(0.05% +10)
• Includes: Multifunction Process Calibrator; Test Leads; Test Clips; Type K Thermocouple Wire Probe; USB Cable; Power Adapter; Carrying Case
