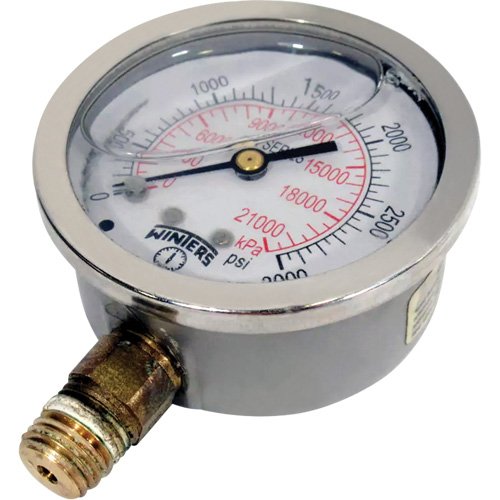

ID088-Stainless Steel Pressure Gauge

• Pulsation-resistant, stainless steel pressure gauge has 0/3,000 psi/kPa
• Brass, lead-free brass or stainless steel internals
• Crimp-on bezel
• CRN registered
• Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments

Specifications

• Dial Diameter: 2-1/2"
• Pressure Range: 0 - 3000 psi
• Connection: Bottom Mount
• Dial Type: Liquid Filled Analogue

Additional Specifications

• Lens: Polycarbonate
• Ring: AISI 304 SS, crimp-on
• Connection: 0.44"-20 SAE
• Fill Liquid: Glycerin
• Bourdon Tube: Glycerin
• Ambient/Process Temperature: Dry: -40 to 200°F (-40 to 93°C), Glycerin filled: -4 to 150°F (-20 to 65°C)
• Accuracy: ±1.5% of full scale
• Enclosure Rating: IP65
• Working Pressure: Maximum 75% of full-scale value
