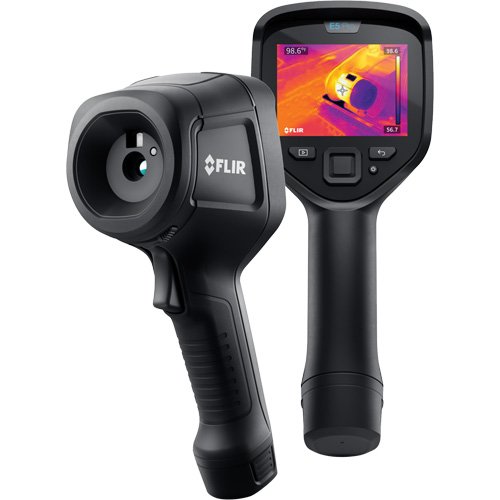

ID061-FLIR E5 Pro Thermal Imaging Camera with Ignite Cloud

• Quickly recognize where problems are located thanks to FLIR MSX® (Multi-Spectral Dynamic Imaging), which embosses key visual details onto thermal images
• Save time spent on manual adjustments with 1-touch level/span
• Improve inspection efficiency using the 640 x 480 touchscreen, with the ability to add detailed notes to each image
• Edit, store, organize, and share images using the FLIR Ignite cloud service
• Create quick reports in FLIR Ignite from any device, or create advanced reports in FLIR Thermal Studio from a PC
• 3.5" (88.9 mm), 640 x 480 screen makes small image details stand out
• 5 MP visual and LED lamp ensure visual details are captured even in low-light areas
• FLIR MSX® enhances thermal image detail for improved understanding
• Desktop sync eliminates issues created by damaged or missing SD cards and USB cables
• Secure data sharing to trusted team for easy collaboration and reporting
• Edit anywhere allows you or coworkers to create reports on mobile devices, on a browser, or desktop
• Focus free ensures thermal images captured are as good as they can be
• Rugged and reliable - proven by 6.6' (2 m) drop test, IP54, 25 G shock, and 2 G vibration testing
• Professional design: Intuitive touchscreen image annotation, removable battery, and built-in lens protection are just three of the many professional design touches you will appreciate
• Register the product with FLIR to receive: FLIR Ignite Pro 12-months 100 GB Cloud Storage, FLIR Academy Ex Pro and Thermography Fundamentals online training, and FLIR PROTECT Extended Warranty (total 5-year warranty upon registration within 30 days of purchase)

Specifications

• Display Size: 3.5"
• Display Type: Built-in
• Resolution: 160 x 120 pixels
• Thermal Sensitivity: 60 mK
• Temperature Range: -15° - 50°C (5° - 122°F)

Additional Specifications

• Spatial Resolution (IFOV): 3.7 mrad
• Field of View (FOV): 33 x 25°
• Image Frequency: 9 Hz
• Standard(s) Met: UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC, EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
• Digital Camera: UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC, EN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
• Picture-in-Picture: IR Area on Visual Image
• Detector Type: Uncooled Microbolometer
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Digital Camera
• Minimum Focus Distance: 1.18' (0.36 m)
