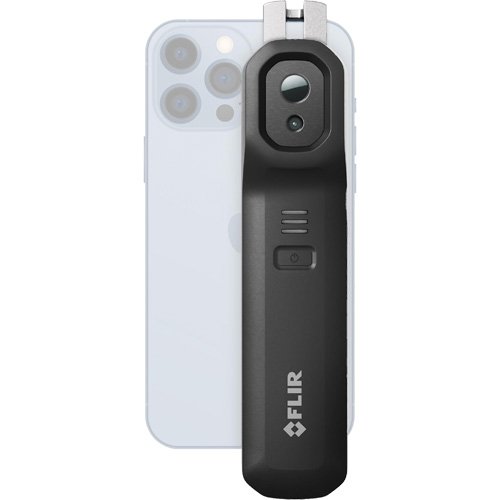

ID058-FLIR ONE Edge Pro Thermal Imaging Camera with Ignite

• Connects wirelessly to your smart device, allowing you to inspect around obstacles and measure targets from a safe distance
• Use the unit with iOS® or Android™ smartphones and tablets regardless of carrier, operating system, size, or future phone upgrades
• Step-by-step application guidance and decision support included to help you when you need it most
• Measure targets in difficult-to-reach areas from any angle, and enhance visibility through remote monitoring
• Remotely inspect hazardous areas up to 100' (30 m) away
• Operate with one hand by clipping the unit to your smart device
• Conveniently scan out-of-reach or out-of-view targets, holding the unit in one hand and your smart device in the other for a clear view of your screen
• Wireless connectivity eliminates compatibility issues and allows you to upgrade your smart device without the need to replace your thermal camera
• Inspect areas accurately with FLIR proprietary image enhancement features
• Easily recognize where problems are located and identify targets with multi-spectral dynamic imaging, which enhances thermal images by embossing visual details from the visual camera onto the thermal image
• Take crisp, clear images with 160 x 120 (19,200 pixels) thermal resolution and VividIR, which combines multiple image frames together to deliver a sharper image
• Measure temperatures up to 752°F (400°C)
• Rugged design with up to 1.5 hour battery life
• Improve efficiency and large enterprise scalability with the unit and its apps and services
• Effortlessly edit and store images in the cloud, and wirelessly transfer files using the included cloud service
• Step-by-step guidance with specific smart device apps
• Simple integration with software

Specifications

• Display Size: None
• Display Type: IOS Smartphone/Android Smartphone
• Resolution: 160 x 120 pixels
• Thermal Sensitivity: 70 mK
• Temperature Range: -10° - 50°C (14° - 122°F)

Additional Specifications

• Spectral Range: 8 to 14 μm
• Visual Resolution: 640 x 480
• HFOV / VFOV: 54° ±1° / 42° ±1°
• Frame Rate: 8.7 Hz
• Focus: 8.7 Hz
• Remote Operation: Up to 100' (30 m) from Smart Device via Wi-Fi
• Image Presentation Modes: Infrared, Visual, MSX
• Battery Life: Approximately 90 Minutes
• Battery Type: Lithium-ion Polymer Rechargaeable Cell
