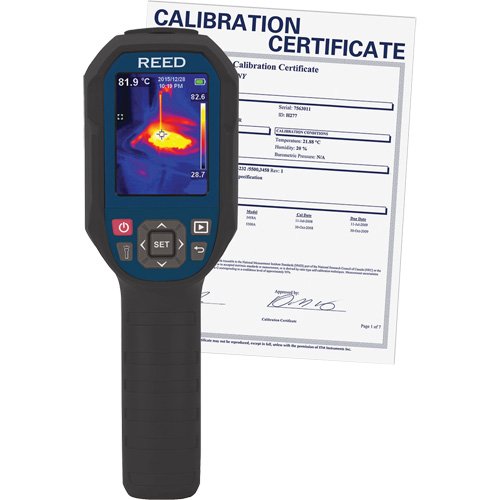

ID032-Thermal Imaging Camera with Calibration Certificate

• Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity
• has the ability to display hot and cold spot temperatures on a 2.8" color LCD and allows a user to choose from 7 different color palettes
• The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
• 2.8" color TFT display
• Built-in LED flashlight
• 7 colour palettes (Ironbow/Rainbow/Rainbow(HC)/Lava/Red-Hot/White-Hot/Black-Hot)
• Intuitive on-screen measurement tools
• 3 image modes (Thermal, Visual Image, Thermal Blending)
• High and Low-temperature spot and alarm indicators
• IP65 and 6.5' (2m) drop tested
• Rechargeable Li-ion battery
• Tripod mountable for continuous long-term monitoring
• View, analyze stored data, and generate reports or projects in real-time
• Low battery indication and auto shut-off

Specifications

• Display Size: 2.8"
• Display Type: Built-in/Windows PC
• Resolution: 160 x 120 pixels
• Thermal Sensitivity: 50 mK
• Temperature Range: 14° - 752°C (-10° - 400°F)

Additional Specifications

• Includes: Thermal Imaging Camera; USB Cable; 32GB Micro SD Card; Soft Carrying Case; Calibration Certificate
• Manufacturer's Warranty: 1 Year
• Field of View (FOV): 56 x 42°
• Optimal Focal Distance: 0.82' (0.25m)
• Image Capture Frequency: 0.82' (0.25m)
• Detector Type: Uncooled microbolometer, Focal plane array (UFPA)
• Spectral Range: 8 to 14µm
• Emissivity: Adjustable (0.01 to 0.99)
• Digital Camera Resolution: 640 x 480 pixels
