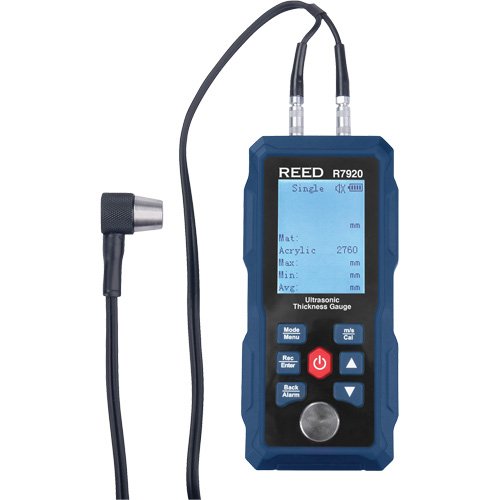

ID026-Thickness Gauge

• A portable device used for non-destructive measurement of the thickness of metal and other materials
• Uses high-frequency sound waves to determine the thickness of a material by measuring the time it takes for the sound waves to travel from the gauge to the material and back
• Easy-to-read backlit LCD display
• User-selectable units of measure (in/mm)
• Internal memory stores up to 300 measurements
• Displays sound velocity at the touch of a button
• User-adjustable High/Low alarms
• Automatic material calibration
• Auto shut-off and low battery indicator
• Suitable for use by technicians and inspectors in a variety of industries

Specifications

• Display: Digital
• Measuring Mode: Ultrasound
• Thickness Range: 0.04" - 11.8" (1 mm - 300 mm)

Additional Specifications

• Includes: Ultrasonic Thickness Gauge; Ultrasonic Couplant Gel; Probe; USB Cable; Carrying Case
• Manufacturer's Warranty: 1 Year
• Accuracy: <10mm: ±0.1mm, ≥10mm: ±(1% rdg. +0.1mm)
• Resolution: 0.1mm/0.01mm/0.01"
• Velocity Range: 0.1mm/0.01mm/0.01"
• Compatible Materials: Steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
• Display: 2.4" monochrome dot matrix screen
• Probe Length: 3' (91cm)
• Probe Diameter: 0.5" (12.7mm)
