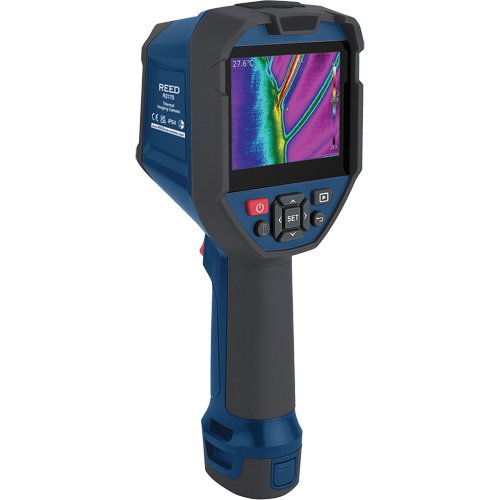

IC923-R2170 Thermal Imaging Camera

• Features a 320 x 240 (76,800 pixels) infrared sensor that can detect temperatures between -40 and 752°F (-40 and 400°C)
• The R2170 has the ability to display hot and cold spot temperatures on a 3.5" color LCD and allows a user to choose from 7 different color palettes
• The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
• The included battery packs have been designed to be easily changed in the field, allowing for continuous work
• Built-in dual LED flashlight
• Intuitive on-screen measurement tools
• 4 image modes: thermal, visual image, picture-in-picture, fusion (thermal blending)
• High and Low temperature spot and alarm indicators
• Tripod mountable for continuous long-term monitoring
• View, analyze stored data and generate reports or project in real-time
• Low battery indication and auto shut off
• Rechargeable Li-ion battery
• 4x digital zoom

Specifications

• Display Size: 3.5"
• Display Type: Built-in
• Resolution: 640 x 480 pixels
• Thermal Sensitivity: 65 mK

Additional Specifications

• Field of View: 56 x 42°
• Focal Length: 4 mm
• Image Capture Frequency: 9 Hz
• Temperature Range: -40 to 752°F (-40 to 400°C)
• Accuracy: -40 to 752°F (-40 to 400°C)
• Spectral Range: 8 to 14 µm
• Battery Life: Approx. 3.5 hours
• Charge Time: Approx. 4 hours
• Standard(s) Met: CE, UKCA, IP54, 6.6' (2 m) Drop Test
