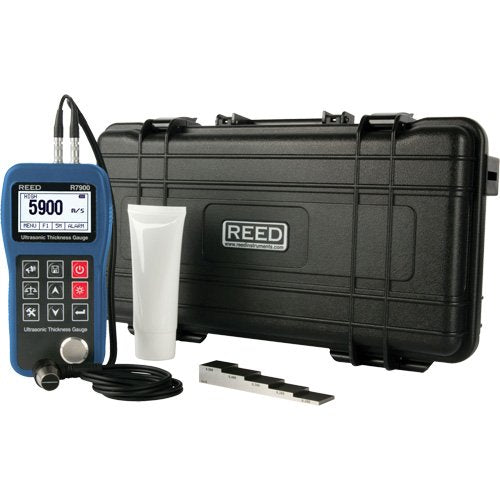

IC716-Thickness Gauge Kit

• Able to gauge thickness measurement without requiring access to both sides of the test piece
• Determines sample thickness by measuring the amount of time it takes for sound to traverse from the transducer through the material to the back end of a part and back
• Calculates the data based on the speed of the sound through the tested sample
• Capable of performing measurements on a wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
• Zero function and sound velocity calibration
• Two-point calibration
• Coupling status indicator
• Can be easily deployed, does not require laboratory conditions
• Includes: Ultrasonic couplant gel, Probe, Hard carrying case, Batteries

Specifications

• Display: Digital
• Measuring Mode: Ultrasound
• Thickness Range: 0.03" - 15.7" (0.65 mm - 400.0 mm)

Additional Specifications

• Sound Velocity Range: 1000 to 9999 m/s (0.039 to 0.394 in/µs)
• Measurement Speed: 4 per second for a single point measurement
• Memory: 5 files, up to 100 values for each file (total of 500 logs)
• Power Supply: 2 x 1.5V AA Batteries
• Measurement Range: 2 x 1.5V AA Batteries
• Frequency: 5 Mhz
