IC697-Electrical Test Kit

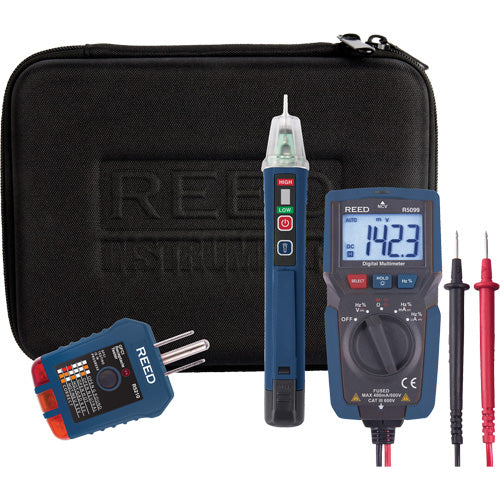

• Kit includes the tools to troubleshoot common electrical problems (digital multimeter, AC voltage detector, receptacle tester and soft carrying case)
• Pocket-sized digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance and duty cycle
• Designed to fit into the palm of your hand

Additional Specifications

• AC Voltage Range: 4, 40, 400, 600V
• DC Voltage Range: 400mV, 4, 40, 400, 600V
• AC Accuracy: 4, 40, 400V ±(1.2% rdg. + 3 dgt.), 600V ±(1.5% rdg. + 5 dgt.)
• DC Accuracy: 400mV ±(0.8% rdg. + 3 dgt.), 4, 40, 400V ±(0.8% rdg. + 1 dgt.), 600V ±(1% rdg. + 3 dgt.)
• AC Resolution: 400mV ±(0.8% rdg. + 3 dgt.), 4, 40, 400V ±(0.8% rdg. + 1 dgt.), 600V ±(1% rdg. + 3 dgt.)
• DC Resolution: 0.1, 1, 10, 100mV, 1V
• AC/DC Current Range: 400, 4000µA, 40, 400mA
• Resistance Range: 400Ω, 4, 40, 400kΩ, 4, 40MΩ
• Capacitance Range: 4, 40, 400nF, 4, 40, 100µF
