IC688-HVAC Kit with Testers

• HVAC Clamp Meter Cat. No. CL320 with TRMS measurement technology measures AC current, NCVT, AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, continuity, and temperature
• Cat. No. IR07 Dual IR Probe and Thermometer measures temperature from -40 to 572 Degrees Fahrenheit (-40 to 300 Degrees Celsius); accurately measure surface temperature with Infrared Thermometer (DS ratio 8:1)
• Measure air vents and duct temperature using temperature probe with hands-free hanging hook
• Calculate differential temperature (T1-T2) for both IR and probe temperatures
• Cat. No. NCVT3P is dual-range and detects from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
• Detects voltage with simultaneous visual and audible voltage indicators
• Bright flashlight illuminates work area and may be used independent of voltage detection function
• CAT IV 1000V rating provides expanded operation and protection

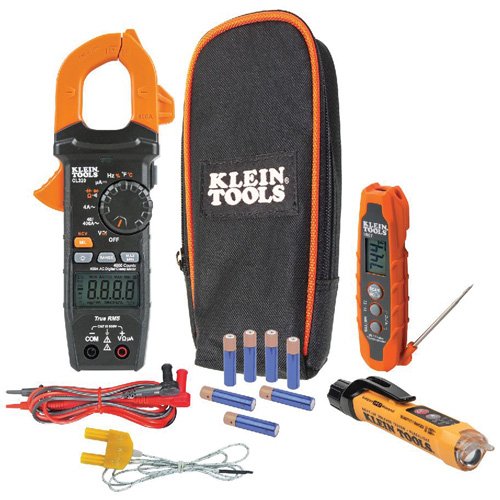

• Includes: (1) Cat. No. CL320 Auto-Ranging TRMS 400A HVAC clamp meter, (1) Cat. No. IR07 Dual IR and probe thermometer, (1) Cat. No. NCVT3P Dual range non-contact voltage tester with flashlight, (1) Set of test leads with CAT III/CAT IV safety caps, (1) Thermocouple, (7) AAA batteries, (1) Storage Pouch

Additional Specifications

• Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC Microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
• Current: 400 A AC
• Capacitance: 4000 µF
• DC Micro-Amp: 200 μA
• Ohms (Resistance): 200 μA
• Voltage: 600V AC/DC (CL320); 1000V AC (NCVT3P)
• Standard(s) Met: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified (CL320); CAT IV 1000 (NCVT3P)
• Weight: 1.575 lbs.
• Jaw Size: 1.6"
