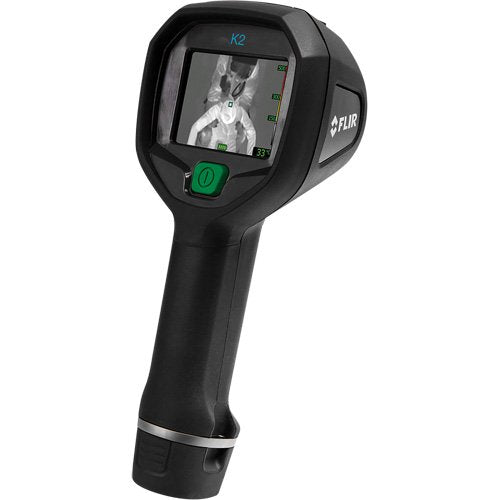

IC547-Fire Protection Thermal Imager

• Easily attached to SCBA gear
• Single large button makes the camera simple to activate even with heavy gloves on
• Withstands 2 metre drop onto concrete
• Set the camera to one of five different imaging modes depending on the use of the camera
• MSX® technology etches key details from the built-in visible light camera onto a thermal image
• Meets NFPA 1801 Specifications for vibration, impact acceleration resistance, corrosion, viewing surface abrasion, heat resistance, heat & flame and product label durability

Specifications

• Display Size: 3"
• Display Type: Built-in
• Resolution: 320 x 240 pixels
• Thermal Sensitivity: 100 mK
• Temperature Range: -20° - 500°C (-4° - 932°F)

Additional Specifications

• IP Rating: IP67
• IR Resolution: 160 x 120 pixels
• Field of View: 47° x 31.5°
• Image Frequency: 9 Hz
• Focal Plane Array (FPA): 9 Hz
• Spectral Range: 7.5 - 13 µm
• Manufacturer's Warranty: 2 Years (Batteries), 5 Years (Components), 10 Years (Detector)
