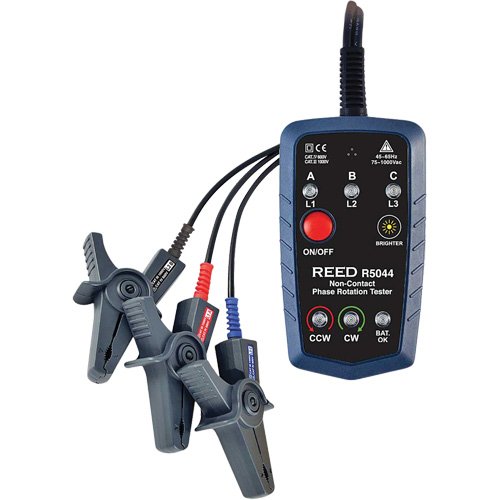

IB943-Non-Contact Phase Rotation Tester

• Non-contact voltage sensing alligator clips promote safety
• Color-coded leads (red, black, blue) meet IEC 60446 standards
• LEDs indicate phase orientation (clockwise or counter-clockwise) and whether each phase is live
• Adjustable LED brightness allows for measurement in sunlight and lowly lit environments
• Beeper sounds intermittently when detecting correct phase and continuously for a reversed phase
• Durable housing with magnets frees hands and allows for easy measurement
• Low battery indicator
• Includes: Rotation tester, 3 x color coded cables with alligator clips, battery and soft carrying case

Specifications

• Display Type: Digital
• No. of Phases: 3

Additional Specifications

• Voltage Detection Method: Static Induction
• Voltage Range: 75 to 1000VAC
• Frequency: 45 to 65Hz
• Indicators: Audible (Buzzer)/ Visual (LED)
• Power Supply: Audible (Buzzer)/ Visual (LED)
• Overvoltage Category: CAT. III 1000V, CAT. IV 600V
